Pearson's Crystal Data Features: Configure the entry report

Features overview
Previous: Figure plots
Next: Configure the entry data sheet

The entry report basically provides a tabular overview of all entries in the current answer set. Every line of the table corresponds with one entry (compound). However, the entry report is more than just a simple list of entries. It is the central place to really work with entries (delete, copy, paste entries). Besides this, you can sort the entries according to multiple criteria, add, delete or change the order of columns, i.e. database fields.

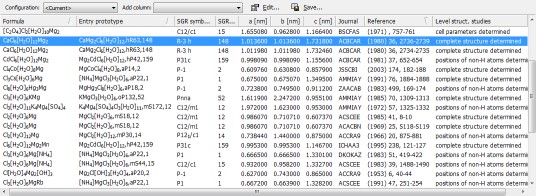

This screen shot shows the default entry configuration with alphabeticall sorted formula, entry prototype, Hermann-Mauguin symbol and International Tables space group number, cell parameters a, b, and c, Journal coden, reference, and level of structural studies:

Entry report with default configuration

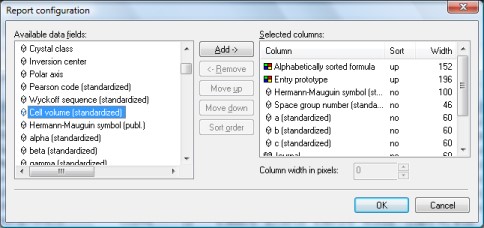

With the "Edit..." command in the command bar above the entry report, you open the entry report configuration dialog, where you can add one or more fields from the (left) list of available data fields:

Dialog to change entry report configuration

You can also change the order of the columns, their widths, and sort order through this dialog, but in most cases it is easier to simply add a column through the "Add column" drop-down list and shift that column, if wanted, with the mouse, and to change the sort order by clicking on the corresponding column header.
